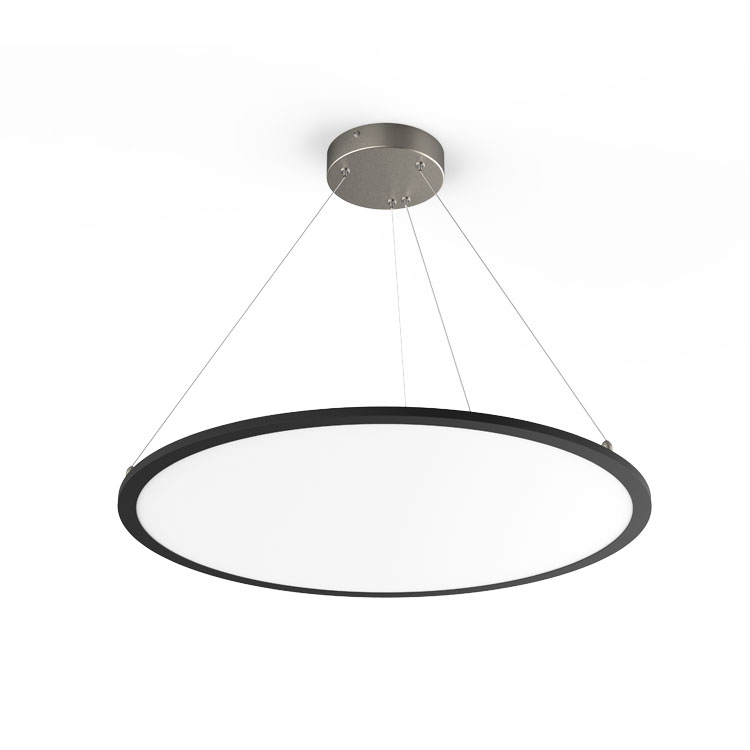

Black Frame Suspended Round Panel Light

The Black frame suspended Round Panel light can be surface mounted and suspended installation .It is widely used for offices, workshops, shopping malls, schools, libraries,hospitals, hotels, retail outlets, living rooms, air ports, entertainment spaces, etc.

Send Inquiry

Product Description

1. Features of Black frame suspended Round Panel light(led panel light lumens、led panel light malaysia)

Suspended/Surface Mounted

LM80 Lamp Source

3000K/4000K/5000K,

Ra>80

Driver PF>0.9

Noise<24dB

Easy Install,Only One Person Required

Compliant with ETL/IC/FCC/Energy star/CE/RoHS/TUV

2. Parameters of Black frame suspended Round Panel light

Item Model ODERPL25W
LED chip SMD 4014
Size Φ600*H20mm
WATTS 25W
Voltage AC120V/AC 220-240V
PF >0.9
Ra 80
CCT 3000K/4000K/5000K
LUMEMS 2000Lm
Warranty 3 years

3. Description of Black frame suspended Round Panel light

Unique structure ensure no light leaking.

Align with surface , no crack.

Aluminum alloy, good heat dissipation.

No start-up time, no flicker.

Ultra slim, white,black,nickel frame available, elegant appearance.

Customize is accepted.

4. LED Panel Light Advantages of Black frame suspended Round Panel light

Edgelite technology, with even lighting without dark spot, bright luminosity, soft and comfortable.

Super slim design with thickness only 20mm for this round led ceiling panel light.

Light source is SMD 4014 LEDs, EVERLIGHT/ Bridgelux/ Samsung chips optional, high brightness and low decay, > 60% energy saving than

fluorescent tubes.

External high PF constant current LED driver, instant start; no flickering and no humming.

Safe and reliable; Input: AC120V/AC220-240V; PF>0.9;

Efficiency: ≥85%.

Better heat sink, with temperature rise less than 20 deg.

Easy installation: mounted on walls or hang from the roof using wires.

50% light intensity,CRI>80.

Long Lifespan: ≥ 50,000hours.

5. Application of Black frame suspended Round Panel light

The Black frame suspended Round Panel light can be surface mounted and suspended installation .It is widely used for offices, workshops, shopping malls, schools, libraries,hospitals, hotels, retail outlets, living rooms, air ports, entertainment spaces, etc.

Hot Tags: Black Frame Suspended Round Panel Light, China, Manufacturers, Factory, Wholesale, UL, ETL, DLC, Energy Star, CE, TUV, SAA, Customized, High Quality, Newest, Latest Selling
