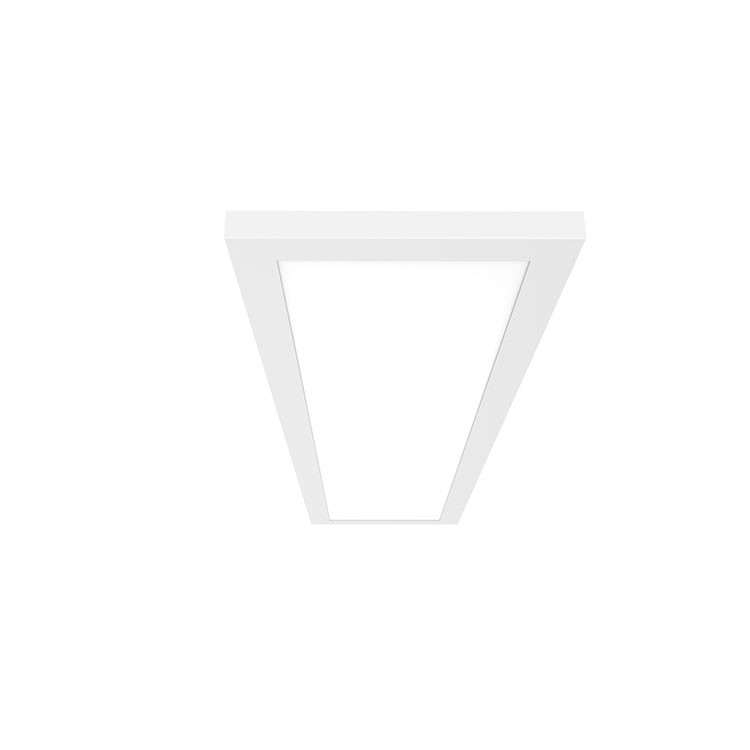

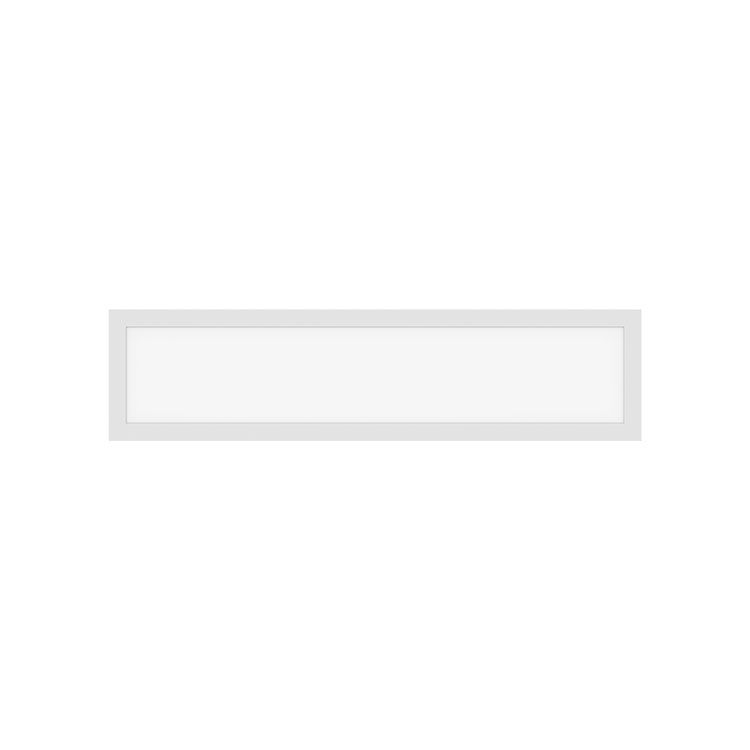

CE Backlit Panel Light
  • CE Backlit Panel Light - 0 CE Backlit Panel Light - 0
  • CE Backlit Panel Light - 1 CE Backlit Panel Light - 1
  • CE Backlit Panel Light - 2 CE Backlit Panel Light - 2
  • CE Backlit Panel Light - 3 CE Backlit Panel Light - 3

CE Backlit Panel Light

You are welcomed to come to our factory to buy the latest selling, newest, cheap, fashion and high quality CE Backlit Panel Light. You can rest assured to buy discount product from us. We look forward to cooperating with you, if you want to know more, you can consult us now, we will reply to you in time!

Send Inquiry

Product Description

CE Backlit Panel Light

1. Features of CE backlit panel light(flat panel led kitchen light、flat led panel light)

Surface mounted

LM80 Lamp Source

3000K/4000K/5000K

Ra>80

Build-in Driver PF>0.9

Noise<24dB

Easy Install,Only One Person Required

Compliant with CE,RoHS,EMC,LVD,ERP,TUV

2. Parameters of CE backlit panel light

Item Model ODSBPL1×4-36W-EU
LED chip SMD 2835
Size L295×W1195×H26mm
WATTS 36W
Voltage AC 220-240V
PF >0.9
Ra 80
CCT 3000K/4000K/5000K
LUMEMS 3600Lm
Warranty 3 years


3. Description of CE backlit panel light

LED Panel Light Series ODEER patent design, Dimming with light switch or dimming driver.

LM80 light source to ensure longer lifespan.

Comparable quality of light with halogen lighting. High color rendering index of Ra 80 to restore the original color of object.

Uniform color temperature, 3000K ,4000K , 5000K. Special color temperature can be customized.

High average life of 50,000h.

Immediate Start with 100% initial brightness.Mercury-free .

4. LED Panel Light Advantages of CE backlit panel light

High efficiency saves energy:The light from the LED light is released through the diffuser directly, which isn't absorbed and reflected from other media. So the utilization of the light is relatively high, and the overall luminious efficiency of light is quite high. Energy saving, it saves 65% than the traditional lights at the same brightness.

Save cost:The components of direct light panel is simpler than ordinary panel, it will save the guide-plate and overall cost will be more effective.

Luminous uniformity:Direct light panel is designed to use the LED luminescence to make a reasonable LED distance, with the diffusion and the height of the light fixtures to achieve the ideal blend of light. Because the light SMD is arranged in a matrix, the reasonable distance between the LED SMD and the PC diffuser, so that the light doesn't have a dark zone, and it improves the brightness uniformity when it's been lighted up.

Long life:Direct light panel is compared with the side light panel, it has a certain distance between the LED SMD and the diffuser. The heat dissipation provides enough space to ensure the long life of the light.

5. Application of CE backlit panel light

1.Hotel / Hospital / Shopping mall

2.Conference / Meeting room / Factory / Office

3.Residential Home / Institution Building

4.School / College / University

Hot Tags: CE Backlit Panel Light, China, Manufacturers, Factory, Wholesale, UL, ETL, DLC, Energy Star, CE, TUV, SAA, Customized, High Quality, Newest, Latest Selling
